Shah Houses



Design: Anupama Kundoo.
Project team: Anupama Kundoo, Vinayagam, Sonali Phadnis.
Location: Auroville, India.
Photographs: Javier Callejas.

Sangamam is located on the outskirts of Auroville, Tamil Nadu, in an area affected by environmental and social problems, including water scarcity, saline water intrusion, soil erosion and declining soil fertility, unemployment, and inadequate housing, educational and medical facilities.

1455C-0277Javier-Callejas

1455C-0024Javier-Callejas1455C-0061Javier-Callejas1455C-0601Javier-Callejas1455C-0634Javier-Callejas1455C-0659Javier-Callejasks_gf

Ketan Shah Plans

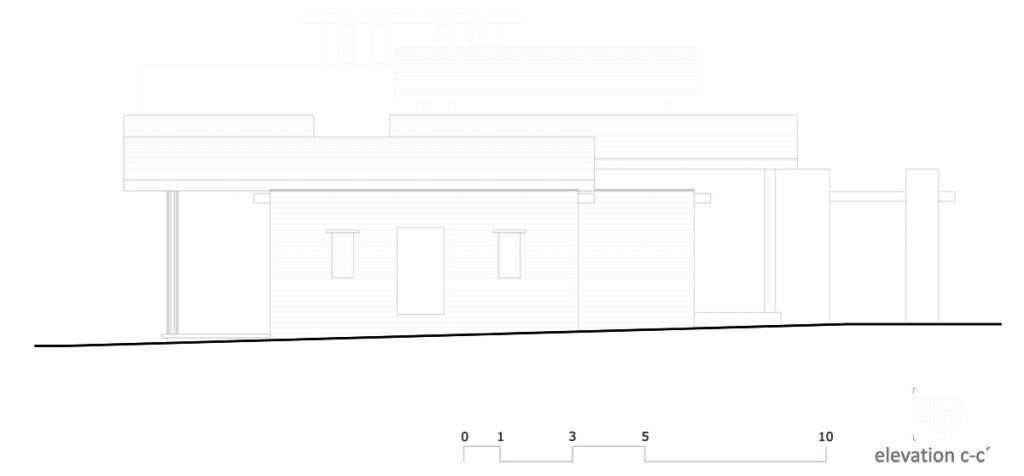

ks_aaks_abks_acks_adKetan Shah Elevations and Sections

Soil from the site has been laboratory-tested and found to be suitable for the construction of load bearing walls. The age-old rammed earth building technique is introduced in a more sophisticated form with cement stabilisation to achieve a better standard of finish, more strength and water-resistance, and enabling a quicker modular method of building. Five per cent of cement is added in the sieved earth to make the mass water-resistant, thereby significantly adding to the wet compressive strength of the material. A team of four labourers can produce a 23cm monolithic wall of 2.2m in length per day.

1455C-0665Javier-Callejas1455S-0197Javier-Callejas

Roofs are built using terracotta filler slabs, bricks as jack arches, and conical hollow vault elements designed specifically to achieve an affordable solution with low environmental impact that is beneficial for generating local employment.

1455S-0023Javier-Callejas1455S-0135Javier-Callejas

The low-cost housing scheme is provided with eco-friendly building infrastructure for rainwater harvesting and waste water treatments systems in a single water tank with 3 separate spaces.

as_ff

Atul Shah Plans

sa

Atul Shah Sections




Client: Auroville Housing Service.
Structural engineer: Dr. Ambalavanan.
Integrated water management: Harald Kraft and Aurofilio Schiavina, Kraft Associates.
Contractor: Auronirmata.
